TX4S-24C Autonics Temperature Controller

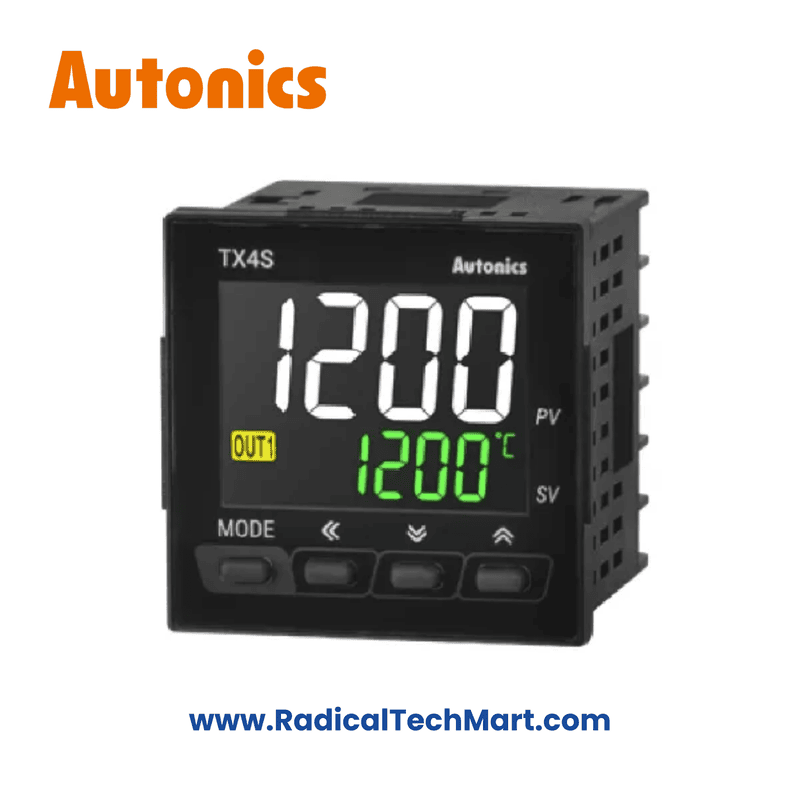

Autonics TX4S-24C LCD PID Temperature Controller (48×48 mm, Current / SSR Output)
The Autonics TX4S-24C is a compact 48×48 mm LCD PID temperature controller with fast 50 ms sampling.
It offers selectable current (4–20 mA) or SSR drive output, powered by 24 VAC/DC, ideal for automation panels and thyristor/SSR control.
The Autonics TX4S-24C is a 48 × 48 mm DIN-size LCD PID temperature controller designed for precise industrial temperature control where 24 V AC/DC power supply is required. It features a clear LCD display, fast 50 ms sampling, and flexible output options.
This model supports selectable current output (4–20 mA / 0–20 mA) or SSR drive output, making it suitable for thyristor units, SSRs, and PLC-based control systems in OEM and automation panels.
Key Features
Compact 48 × 48 mm DIN panel size
High-visibility LCD display (PV/SV indication)
50 ms high-speed sampling
±0.3% FS accuracy
Selectable control output:
Current output (4–20 mA / 0–20 mA)
SSR drive output
Supports thermocouple & RTD inputs
ON/OFF, P, PI, PD, PID control modes
PID auto-tuning for stable control
Slim-depth design for compact panels
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | LCD PID Temperature Controller |
| Model | TX4S-24C |
| Series | TX |
| Panel Size | 48 × 48 mm |
| Display Type | LCD |
| Sensor Input | Thermocouple / RTD |
| Control Output | Current or SSR Drive (Selectable) |
| Current Output | 4–20 mA / 0–20 mA (≤ 500 Ω) |
| SSR Drive Output | 12 VDC ±2 V, ≤ 20 mA |
| Alarm Output | 1 Relay Alarm |
| Sampling Period | 50 ms |
| Accuracy | ±0.3% FS |
| Power Supply | 24 VAC / 24 VDC |
| Control Modes | ON/OFF, P, PI, PD, PID |
| Operating Temperature | −10 to +50 °C |
| Mounting | Panel Mount |
Applications
Thyristor-based heater control
SSR-controlled heating systems
Plastic processing machines
Packaging and sealing machines
Industrial automation panels
OEM temperature control systems
What’s in the Box?
Autonics TX4S-24C Temperature Controller
Panel mounting bracket
Instruction manual
FAQ
Q1. What does “24C” indicate in TX4S-24C?
“24” indicates a 24 VAC/DC power supply, and “C” indicates selectable current or SSR drive output.
Q2. Can this controller be used with a thyristor unit?
Yes. The 4–20 mA output is suitable for thyristor power controllers.
Q3. Which sensors are supported?
Supports thermocouples (K, J, T, R, S, etc.) and Pt100 RTD sensors.
Q4. Does it support PID auto-tuning?
Yes. Built-in PID auto-tuning is available.
Q5. What is the panel cut-out size?
Standard 45 × 45 mm panel cut-out.
